PRODUCT INTRODUCTION

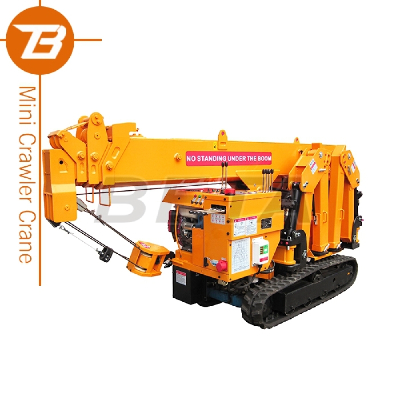

New Crawler Portable Mini Crane with Max.Lifting Height of 9.5m
Quick Detail:
Lifting capacity: 3 tons
Gradeability: 30°
Boom length: 8.2m
Wireless remote control
Tip-over warning device
Slewing angle: 360° continuous
Maximum lifting height: 9.5m
Description:
HXB 3Tx1.3m crane walks on a hydraulic crawler with hydraulic winching, stretching, up & down and slewing systems.
The equipment adopts some advanced design method and idea like solidworks 3D, ANSYS Element analysis of limit and computerization of total machine.
Therefore, it has many advantages such as better flexibility, convenient operation, compact structure, stable performance, reliable use and convenient maintenance.
Applications:
The HXB crane is widely applied to lifting especially in some narrow space where heavy-duty crane cannot get in.
The No. 1 spider crane Manufacturer of all the manufacturers in China.
OVERSEAS CRANE TRAINING SERVICE
Don't know how to use the crane? Doesn't matter at all.
We have overseas crane training service for you at your office.
After theoretical and practical training , you will know how to use the cranes.
SPECIFICATION
Technical data
Model | HXB | |
Crane capacity | 3.0t×1.3m | |
Maximum working radius | 7.7m | |
Maximum lifting height | 9.5m | |
Winch | Hook up speed | 2.8m/min(4 times) |
Diameter and length of wire rope | Ø8mm×50m | |
Telescopic | Boom form | 4 (4 Automatic) |
Boom length | 8.2 m | |
Derrick | Derricking angle | 0-75° |
Slewing | Slewing angle | 360-degree continuous |
Outrigger | Form of outrigger | First phase--automatic Second phase--manual |
Maximum extend range | 5.3m | |
Traction system | Travel | Hydraulic |
Travel speed | 0-3.0km/h | |
Track | Synthetic rubber | |
Gradeability | 30° | |
Track ground pressure | 36kpa | |
Engine and machine parameters
Engine | Model | HONDA GX390 |
Displacement | 389.2ml | |
Outputpower | 13HP(9.6KW) | |
Starting method | Electric and Recoil Start | |
Fule/Fule tank capacity | Automotive gasoline/6L | |
Hydraulic(crane) | Tank capacity | 38L |
L×W×H | 3.0m×0.8m×1.5m | |
Total weight | 2,000kg | |
We are the mini crane manufacturing factory in Hangzhou for years (only one hour train from Shanghai) , not trading company. Strict quality after-sales service are provided directly!
OVERSEA CUSTOMERS
Sweden
France
India
Honduras
Australia
South Africa
Egypt
Japan
Indonesia
...
Our spider cranes are now working in 6 continents, except the Antarctica.
