PRODUCT INTRODUCTION

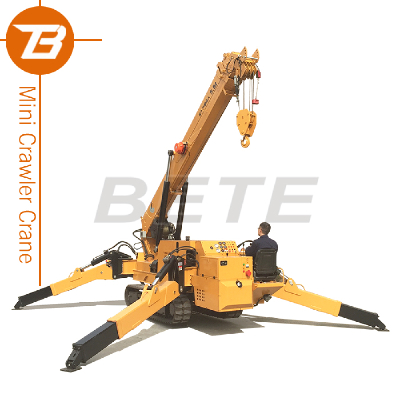

Brand New No.1 Foldable 5T Mini Crawler Crane in China with Overseas Training Service from Bete Factory
HXB series 5.5t mini crawler crane walks on a hydraulic crawler with hydraulic winching, stretching, up & down and slewing systems. The equipment adopts advanced design methods and idea like solid works 3D, ANSYS Element analysis of limit and computerization of total machine. Therefore, the equipment has many advantages such as better flexibility, convenient operation, compact structure, stable performance, reliable application and convenient maintenance. The HXB5.5 mini crawler crane is widely applied in narrow working space where heavy-duty crane could not get in.
Technical data
Model | HXB 5.5 | ||
Crane capacity | t×m | 5.5t×1.8m | |
Max operating radius | m | 16m | |
Max. lifting height (on the ground) | m | 16.9m | |
Winch | Hook up speed | m/min | 10m/min (4 falls) |
Diameter and length of wire rope | Ø×m | Ø10×80m | |
Telescopic | Boom form | 5 section with fly jib | |
Boom length | m | 16.6m | |
Derrick | Derricking angle | deg | 0~80deg |
Slewing | Slew angle | deg/rpm | 360-degree continuous |
Outrigger system | Form of outrigger | Fully automatic | |
Maximum extend range | mm | 5170×5807× 5423mm | |
Traction system | Travel | Hydraulic | |
Travel speed | km/h | 0-3km/h | |
Track | Synthetic rubber | ||
Gradeability | % | 32% | |
Track ground pressure | Kpa | 41.3Kpa | |
Engine | Model | YANMAR 3TNV88 | |
Displacement | L [cc] | 1.642 [1,642] | |
Rated output | kw/min-1[ps/rpm] | 21.4kw/2400min-1 [29.1PS/2400rpm] | |
Starting method | Electric starting | ||
Fuel / Fuel tank capacity | L | Diesel/60.0 | |
Motor | Motor type | Totally enclosed fan-cooled motor 7.5kw, 4P 380V | |
Starting system | Inverter system (30Hz-60Hz) | ||
Remote control system | Type | Cable remote controller | |
Load display for transmitter | Available | ||
Outrigger operation | Available | ||
Voice | Available | ||

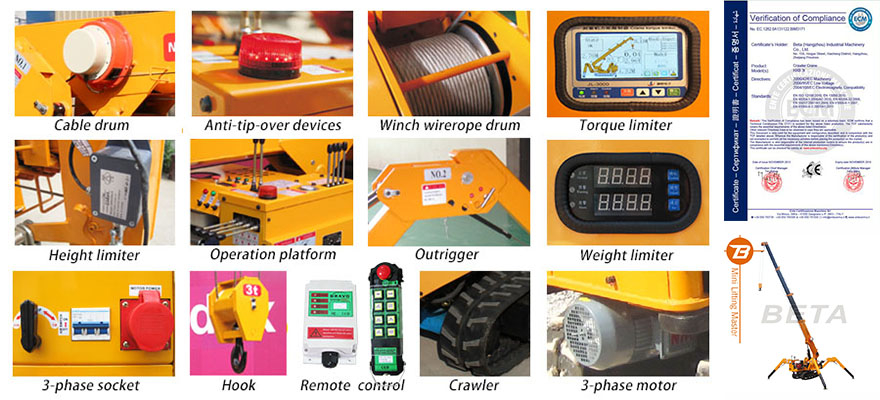

Safety device | Overwind protection, Load indicator, Wire rope latch, Level, Outrigger interlock device | ||
Optional equipment | White rubber track, Working basket Glass lifter Rain cover | ||
